Scorpion-XL6

Reviews: 0

Add a review

$2,340 / pcs.

Add to Cart

Calculate delivery

Product Description

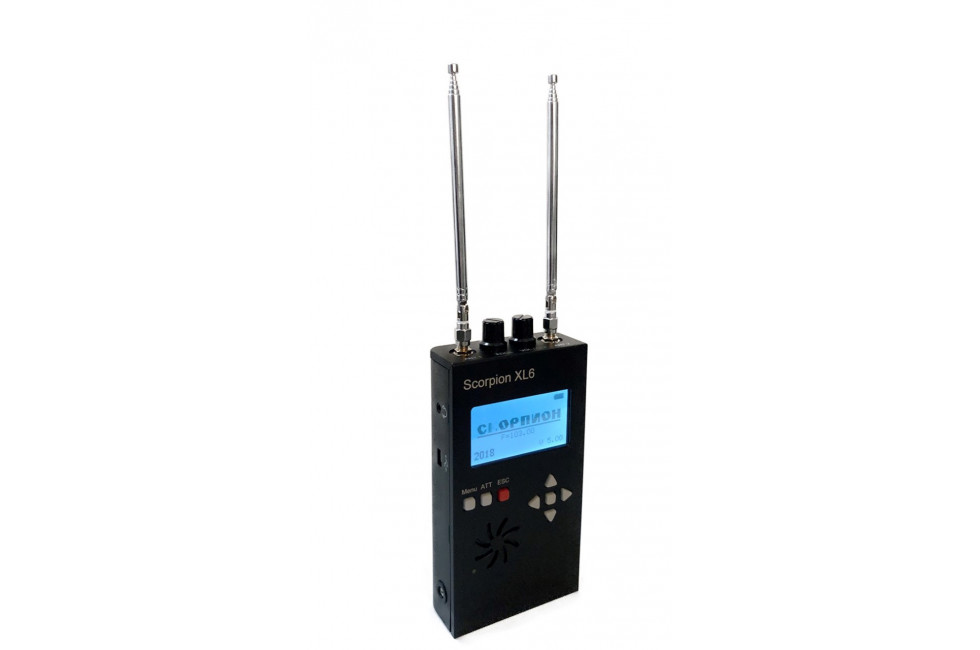

High-speed search receiver "Scorpion-XL6"

it is a new development in a series of search receivers. The range of received frequencies: 30-6000 MHz; search in the GSM, DECT, CDMA bands.

The high-speed search receiver of radio signals "SCORPION-XL6" is a new development in the series of search receivers. From the "Scorpions" of the previous series, it is distinguished by an extended range of up to 6,000 MHz, a convenient graphical display that allows you to display a spectrogram of the studied range, as well as a computer interface.

"SCORPION-6XL" has retained all the main features of its predecessors. This is a portable radio control device designed to automatically detect signals emitted by illegal radio transmitters and suppress their reception channels.

"SCORPION-XL6" ALLOWS YOU TO:

• make a study of the radio-electronic situation in a particular place of its operation with the memorization of signal frequencies;

• to detect and determine the location of the existing illegal transmitter in a controlled environment;

• suppress the signal reception channel of the detected illegal transmitter by setting the target interference at its frequency;

• check the operability of receivers, field indicators, frequency meters and other technical means using the built-in test generator.

MAIN TECHNICAL CHARACTERISTICS

The range of received frequencies	30 - 6000 MHz
Sensitivity:
In the range of 30 - 2000 MHz	no more than 50 mv
In the range of 2000-3000 MHz	no more than 100 mv
In the range GSM and DECT	no more than 500 mkV
In the panoramic view mode	no more than 300 mkV
Output power of the test generator/interference generator
In the range of 40-1000 MHz	not less than 50 mv
In the range of 1000-2500 MHz	not less than 10 mv
Bandwidth at the intermediate frequency, kHz ..20000, 200, 2,5	• Auto-tuning • Autofill • Auto-exclusion • Search
Scan time	No more than 15 seconds.
• Search within the ranges of GSM, DECT, CDMA • Panoramic view mode-automatic tuning in the range of 70...6000 MHz in increments of 20 MHz with the ability to view the channel highlighted with a marker in increments of 200 kHz and 10 kHz (spectrogram) • Reception on two antennas with a programmable level difference detection threshold. • The ability to scan over programmable 1-2 m sections of the range. • Manual set of receive frequency and test generator • Waveform from the output of the AD and CD. • Seven-way preselector. • 128*64 graphic display with backlight. • Battery status indication. • The watch. • RS-232
